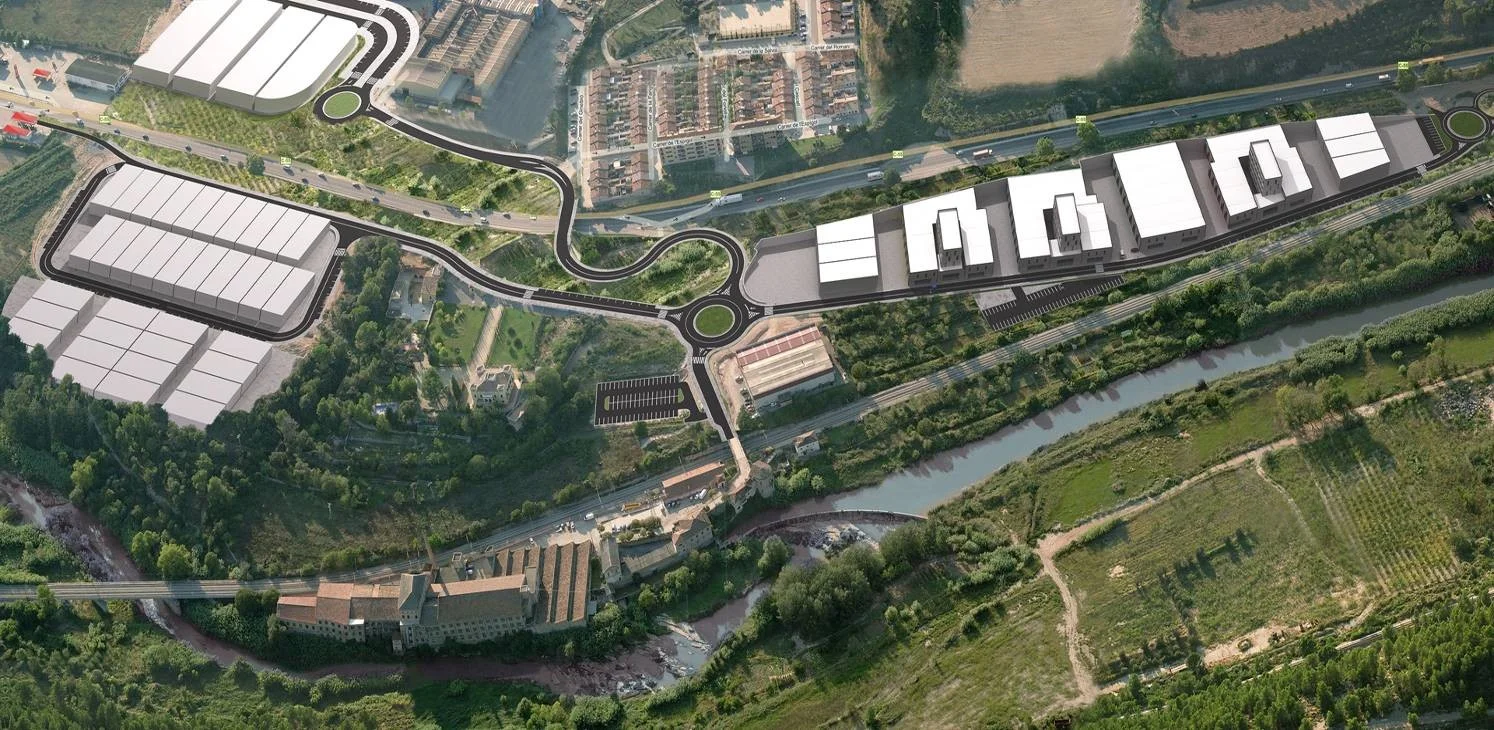

URBANISATION OF THE INDUSTRIAL PARK ELLS COMTALS. SUBSECTION 1, A MANRESA
– 5100m of pipe for the stormwater drainage network: ribbed PE (DN-200 to 400mm) and reinforced concrete pipes (DN-500 to 1000mm).
– 1900m of vitrified stoneware pipe for the black water drainage network with diameters of 150 and 300mm.

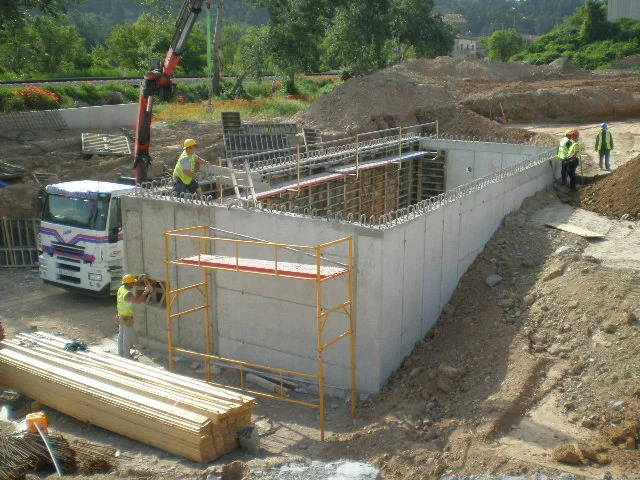

– 2 pumping stations with stormwater reservoirs, between 150m³ and 200m³.

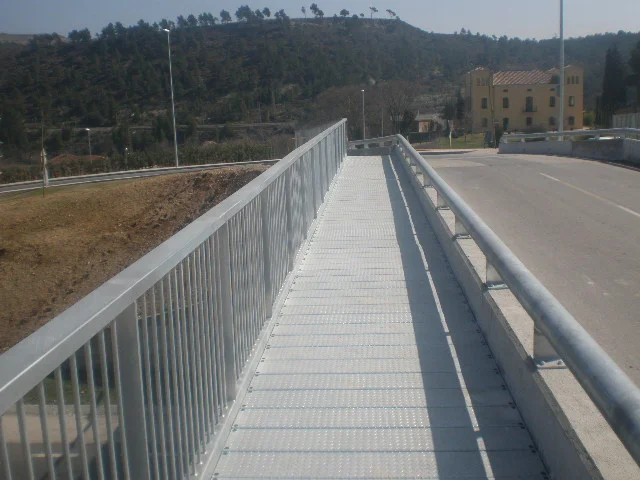

– Widening of sidewalks on a viaduct over the C-55 road.
– 5 jackings of 30m under the C-55 road, with steel liners of DN-1400mm, 600mm and 3 liners of 400mm.
– Three 40m pile drivings under the railway line (Barcelona – Manresa), with steel casings of DN-1400mm, 1200mm, and 800mm.
– Paving of 24,500m² of each layer of the roads and access roads to the development, with hot mix bituminous mix of type G-20 (first layer) and S-12 (wearing course).
– In-situ stabilization of 17,600m² of road surface with cement-stabilized gravel.
– 9,800m² of sidewalk paving with HM-25 concrete.
– 3.3km of drinking water network and 780m of irrigation network.
– Underground installation of 3,060m of low and medium voltage electrical network and installation of 6 transformer substations.

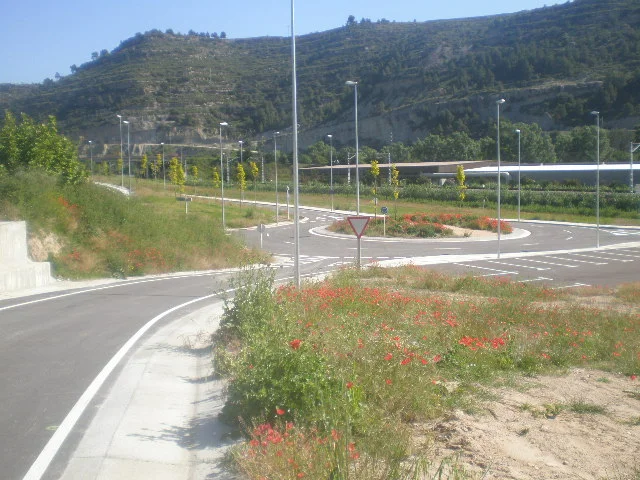

– Underground installation of 2,750m of public lighting network and installation of 130 streetlights.
– 2520m of pipeline for telecommunications and fiber optics.
– Planting of 280 trees, 1100 shrubs and flowers and hydroseeding over 4 ha.
